What is the CF-1R Alt HVAC form?

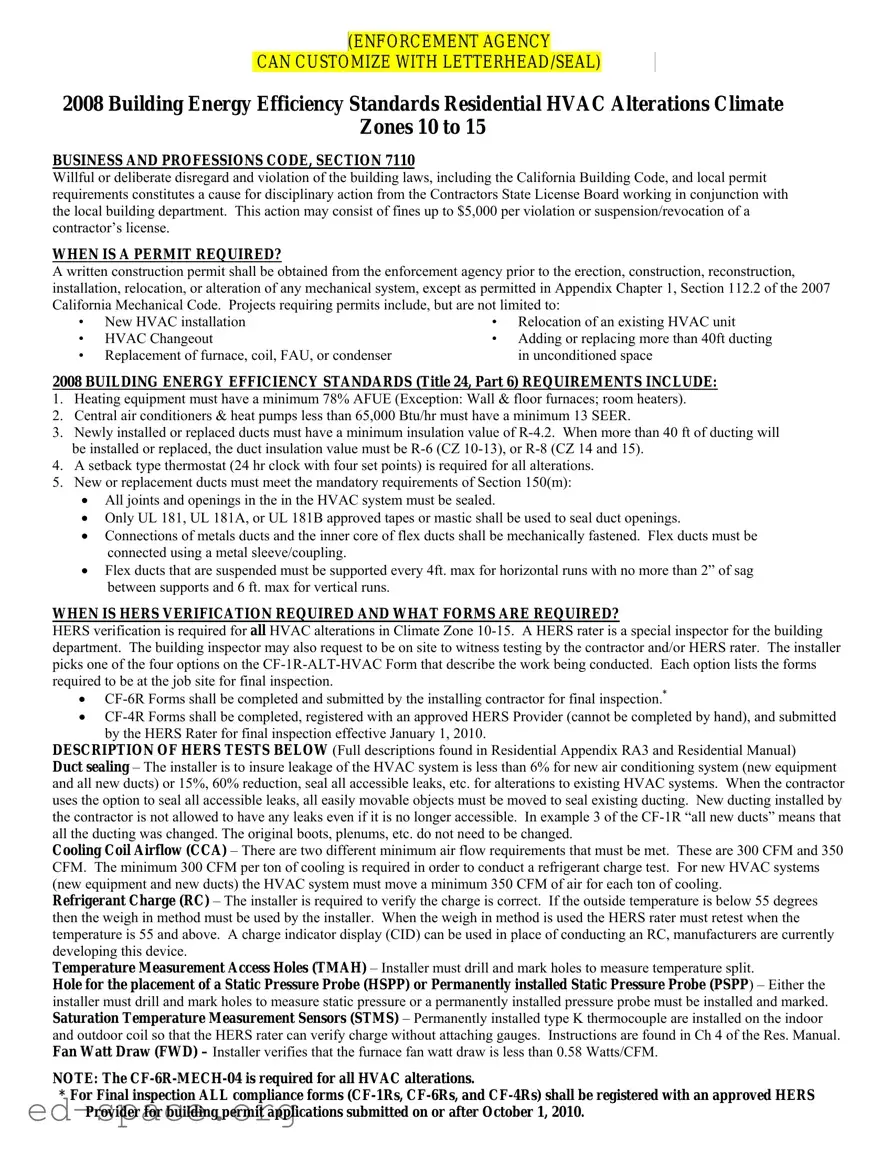

The CF-1R Alt HVAC form is a document required for HVAC alterations in California's Climate Zones 10 to 15. It ensures compliance with the 2008 Building Energy Efficiency Standards. This form outlines the specific requirements and necessary inspections for HVAC projects to promote energy efficiency and safety.

When is a permit required for HVAC work?

A permit is necessary before starting any construction, installation, or alteration of mechanical systems, including HVAC units. This applies to new installations, relocations, and significant changes like replacing more than 40 feet of ducting or components in unconditioned spaces.

What are the minimum efficiency requirements for HVAC systems?

Heating equipment must have at least a 78% Annual Fuel Utilization Efficiency (AFUE). For central air conditioners and heat pumps under 65,000 BTU/hr, a minimum of 13 Seasonal Energy Efficiency Ratio (SEER) is required. Additionally, newly installed ducts need a minimum insulation value of R-4.2, increasing to R-6 or R-8 depending on the climate zone.

What is HERS verification, and when is it required?

HERS verification is a process that ensures HVAC alterations meet energy efficiency standards. It is required for all HVAC changes in Climate Zones 10 to 15. A HERS rater, a special inspector, will confirm compliance with the necessary energy efficiency measures during the final inspection.

What forms must be submitted for final inspection?

For final inspection, the installer must submit CF-6R forms, which detail the work completed, and CF-4R forms, which are completed by the HERS rater. All forms must be registered with an approved HERS Provider, ensuring they meet the necessary standards.

What are the consequences of not obtaining the required permits?

Failure to obtain the necessary permits can result in disciplinary action from the Contractors State License Board. This may include fines up to $5,000 per violation or even suspension or revocation of a contractor’s license.

What are the requirements for duct sealing?

For new air conditioning systems, duct leakage must be less than 6%. For alterations to existing systems, leakage must be below 15%. All accessible leaks must be sealed, and new ducts should not have any leaks, even if they are not easily accessible.

What is the significance of the setback thermostat requirement?

A setback thermostat is essential for all HVAC alterations. It allows for better temperature control, contributing to energy savings. This device should have a 24-hour clock and four set points to optimize heating and cooling efficiency.

What happens during the final inspection?

During the final inspection, the inspector verifies that the work listed on the CF-1R Alt HVAC form matches what was completed. They will also check that all required CF-6R and registered CF-4R forms are filled out correctly and present on-site.

How can I ensure compliance with the CF-1R Alt HVAC form requirements?

To ensure compliance, carefully follow the guidelines outlined in the CF-1R Alt HVAC form. Work with qualified contractors who understand the requirements and can help with proper documentation and inspections. Keeping all forms organized and registered will also facilitate a smoother inspection process.

1. Inaccurate Equipment Information: Many individuals fail to provide precise details about the HVAC equipment being installed or altered. This includes missing or incorrect entries for minimum efficiency ratings, such as AFUE, SEER, or HSPF. Accurate information is crucial for compliance with energy efficiency standards.

2. Improper Selection of Required Forms: Users often select the wrong forms for their specific HVAC alteration type. Each alteration option has designated forms that must be completed and submitted. Not adhering to this requirement can lead to delays or complications during the inspection process.

3. Neglecting HERS Verification: Some applicants overlook the necessity for HERS verification. All HVAC alterations in Climate Zones 10-15 require this verification. Failure to arrange for a HERS rater can result in non-compliance and potential penalties.

4. Incomplete Documentation: Submitting incomplete forms is a common mistake. All necessary sections of the CF-1R-ALT-HVAC form must be filled out thoroughly. Missing signatures or required information can lead to rejection of the application.

5. Ignoring Duct Insulation Requirements: Many individuals do not pay close attention to duct insulation specifications. For instance, if more than 40 feet of ducting is added or replaced, the insulation values must meet specific standards (R-6 or R-8, depending on the climate zone). Non-compliance can lead to costly revisions.

The CF-1R Alt HVAC form is essential for HVAC alterations in California, particularly in climate zones 10 to 15. However, several other forms and documents often accompany it to ensure compliance with building codes and regulations. Below is a list of these forms, each playing a vital role in the overall process.

• CF-6R Forms: These forms are completed by the installing contractor and submitted for final inspection. They detail the compliance measures taken during the installation of HVAC systems, ensuring that energy efficiency standards are met.
• CF-4R Forms: This form is registered with an approved HERS Provider and submitted by the HERS Rater. It verifies that the HVAC system meets all necessary energy efficiency requirements and must be completed electronically, as handwritten submissions are not accepted.
• HERS Verification Summary: This document outlines the specific HERS measures that need to be conducted for the HVAC alteration. It ensures that all testing and inspections are properly documented and verified by a HERS rater.
• Simplified Prescriptive Certificate of Compliance: This certificate confirms that the HVAC installation meets the minimum efficiency standards set forth in the California Building Energy Efficiency Standards. It serves as a summary of the compliance measures taken.
• Documentation Author's Declaration Statement: This statement is signed by the responsible designer, certifying that all documentation is accurate and complies with the relevant regulations. It ensures accountability and transparency in the compliance process.
• Inspection Reports: These reports provide a record of the inspection findings conducted by the building inspector or HERS rater. They detail any issues found during the inspection and confirm whether the installation complies with all applicable codes.

Each of these documents plays a critical role in ensuring that HVAC alterations comply with regulations and standards. Proper completion and submission of these forms can help avoid potential fines and ensure a smooth inspection process.

• CF-1R Form: This form is used for general compliance with energy efficiency standards in residential buildings. Like the CF-1R Alt HVAC form, it requires detailed information about the HVAC system and its efficiency ratings.
• CF-6R Form: This document is essential for final inspections. It ensures that the installed HVAC systems meet the required energy efficiency standards, similar to the CF-1R Alt HVAC form.
• CF-4R Form: This form is completed by a HERS rater and is necessary for compliance verification. Both the CF-4R and CF-1R Alt HVAC forms focus on the performance of HVAC systems.
• HERS Verification Report: This report confirms that the HVAC system meets the performance criteria. It parallels the CF-1R Alt HVAC form in its emphasis on energy efficiency and compliance.
• Building Permit Application: This application is required for construction projects, including HVAC installations. Like the CF-1R Alt HVAC form, it ensures that all work complies with local building codes.
• Energy Compliance Certificate: This certificate verifies that a building meets energy efficiency standards. It shares similarities with the CF-1R Alt HVAC form in its purpose of ensuring compliance.
• Mechanical Code Compliance Form: This form ensures that mechanical systems, including HVAC, comply with the mechanical code. It is similar to the CF-1R Alt HVAC form in its focus on regulatory compliance.
• Inspection Checklist: This checklist is used by inspectors to verify that all aspects of a project meet local codes. It serves a similar purpose to the CF-1R Alt HVAC form during the final inspection.
• Change Order Form: This form documents any changes to the original project plans. Like the CF-1R Alt HVAC form, it ensures that any modifications comply with regulations.
• Installation Manual: This manual provides guidelines for proper installation of HVAC systems. It is similar to the CF-1R Alt HVAC form in that both emphasize the importance of following established standards for efficiency and safety.

When filling out the CF-1R Alt HVAC form, it is important to follow specific guidelines to ensure compliance and accuracy. Here are seven things you should and shouldn't do:

• Do read the instructions carefully before starting.
• Do ensure all required forms are completed and available for final inspection.
• Do provide accurate information about the equipment being installed.
• Do check the minimum efficiency requirements for HVAC systems.
• Don't leave any sections of the form blank; fill in all required fields.
• Don't submit hand-filled CF-4R forms; they must be registered with an approved HERS Provider.
• Don't ignore local building codes or permit requirements; they must be followed strictly.

Misconceptions about the CF-1R Alt HVAC form can lead to confusion and potential non-compliance with California's building energy efficiency standards. Here are seven common misconceptions, clarified for better understanding.

• A permit is not necessary for HVAC alterations. Many believe that minor changes do not require a permit. However, any installation, relocation, or alteration of mechanical systems typically requires a written construction permit from the enforcement agency.
• Only new HVAC installations require HERS verification. This is incorrect. HERS verification is mandatory for all HVAC alterations in Climate Zones 10-15, regardless of whether the system is new or existing.
• All ductwork can be replaced without restrictions. In reality, if more than 40 feet of ducting is added or replaced, specific insulation requirements must be met. The insulation value must be R-6 or R-8, depending on the climate zone.
• Any type of tape can be used for sealing ducts. This is a misconception. Only UL 181, UL 181A, or UL 181B approved tapes or mastic are permitted for sealing duct openings to ensure compliance with energy standards.
• There are no penalties for non-compliance with the CF-1R form. In fact, willful disregard of building laws can lead to fines up to $5,000 per violation or even the suspension or revocation of a contractor's license.
• The CF-1R form is the only document needed for final inspection. This is misleading. The installer must also have CF-6R and CF-4R forms completed and registered with an approved HERS provider for final inspection.
• All equipment must be replaced during an HVAC changeout. Not necessarily. The CF-1R form allows for partial replacements, such as changing out specific components like the indoor coil or furnace, without needing to replace the entire system.

Understanding these misconceptions helps ensure compliance with California's building energy efficiency standards and promotes better practices in HVAC alterations.

Here are five key takeaways for filling out and using the CF-1R Alt HVAC form:

• Understand Permit Requirements: A permit is necessary for any mechanical system alterations, including new installations and duct replacements exceeding 40 feet.
• Know the Efficiency Standards: Ensure that heating equipment meets a minimum of 78% AFUE and central air conditioners achieve at least 13 SEER.
• Complete Required Forms: The installer must select the appropriate option on the CF-1R-ALT-HVAC form and ensure that CF-6R and CF-4R forms are filled out for final inspection.
• HERS Verification: HERS verification is mandatory for all HVAC alterations in Climate Zones 10-15, and a HERS rater must be involved in the process.
• Documentation Accuracy: The contractor must certify that all documentation is accurate and complete, adhering to the requirements of Title 24 and local regulations.
